Microcomputers and microcontrollers

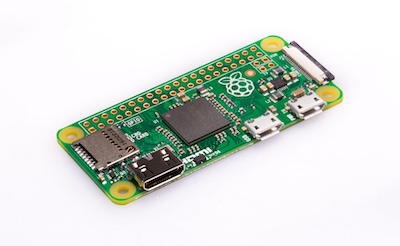

Raspberry Pi Zero

This can be a Wi-Fi-capable model or a basic version without Wi-Fi. If you use the version without Wi-Fi, we have a tutorial on how to create a Wi-Fi antenna on the communication mast.

Although the basic Zero is hard to find these days, we still support this board because the Dolphin project started when only the first version of the Zero was available. As the Zero W 2 is more capable, main development is now shifting to this board, which will bring new onboard image processing such as advanced object recognition, image-pattern-based navigation, and more.

Pieces: 1

Buy from your favorite vendor

SD CARD

Buy or use an SD card with enough space for images and videos. More space is better.

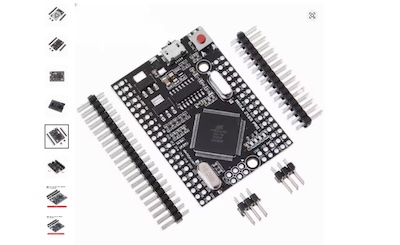

Arduino MEGA mini

There are two versions: MEGA PRO and MEGA PRO MINI. They differ in a lot of aspects, but you will recognize them by the fact that one has a USB connector and the other does not. We need the one with USB.

Exact model: MEGA PRO | Mega2560 Pro ATmega2560-16AU USB CH340G

Pieces: 1

Arduino PRO MINI 5V 16MHz

Exact model: Arduino PRO MINI 5V 16MHz

Pieces: 2

USB to TTL Adapter for PRO MINI

Arduino NANO ATMEGA328

Nanos can have USB mini or USB-C. Pick whatever you prefer as long as it is the ATMEGA328 version.

This one will serve as a connector to I2C sensors inside the AUV's dry compartment.

Pieces: 1

Arduino NANO ATMEGA168

Nanos can have USB mini or USB-C. Pick whatever you prefer as long as it is the ATMEGA168 version.

This one will control radio transmission on the notebook/handheld side. No need for greater memory.

Pieces: 1
