GPS Sensor
DOWNLOAD BLENDER FILE
Do not use Blender files for 3D printing. Parts can be outdated or for reference only.
Use the STL downloads below instead.
Downloads are 100% free. You only need to log in or register.
Items needed for the build
- GPS U-blox module
- GPS antenna
- Connector
- 4-core wire 35cm, approx. 26 AWG
- 3D STL Files for housing
STL files for 3D printing
| Pict | Part name | Best mat | Qty | Notes |
|---|---|---|---|---|
 |

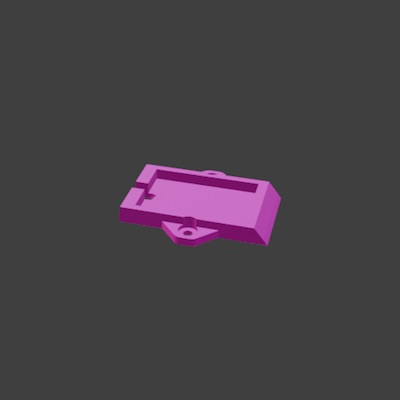

Gs1 | PETG | 1 | |
 |

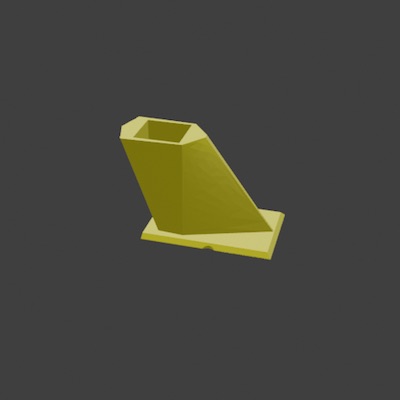

Gs2 | PETG | 1 | |
 |

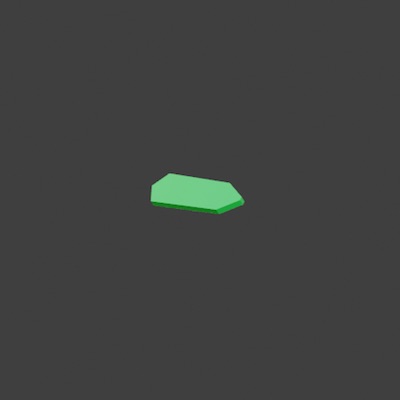

Gs3 | PETG | 1 | |
 |

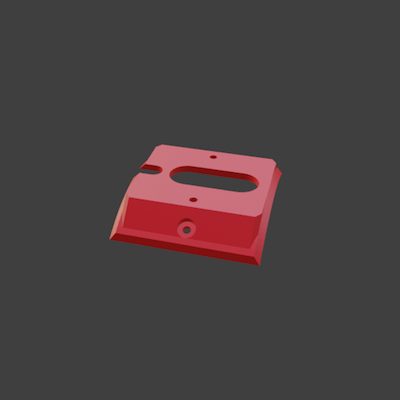

Gs4 | PETG | 1 |
STL FILES DOWNLOAD
3D part downloads are 100% free and the files are complete.
You only need to log in or register.

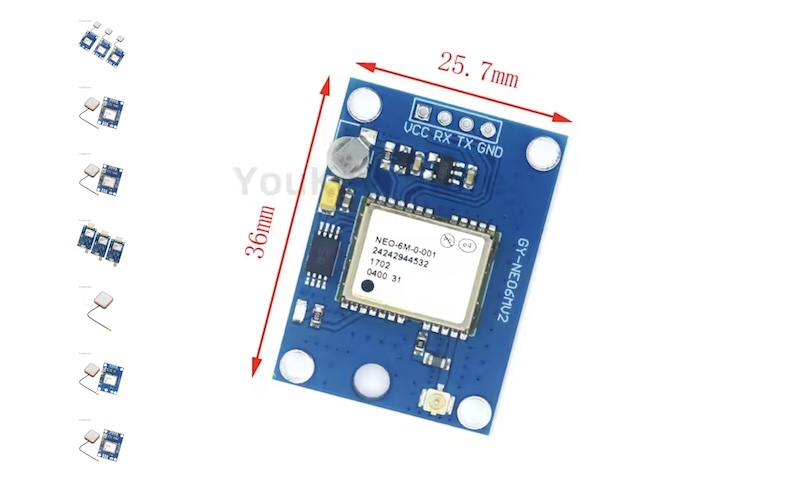

AliExpress: GPS U-blox module
Exact model: GY-NEO6M or GY-NEO6MV2
BUY FROM ALIEXPRESS
GY-NEO6MV2 GPS Module with Flight Control EEPROM.

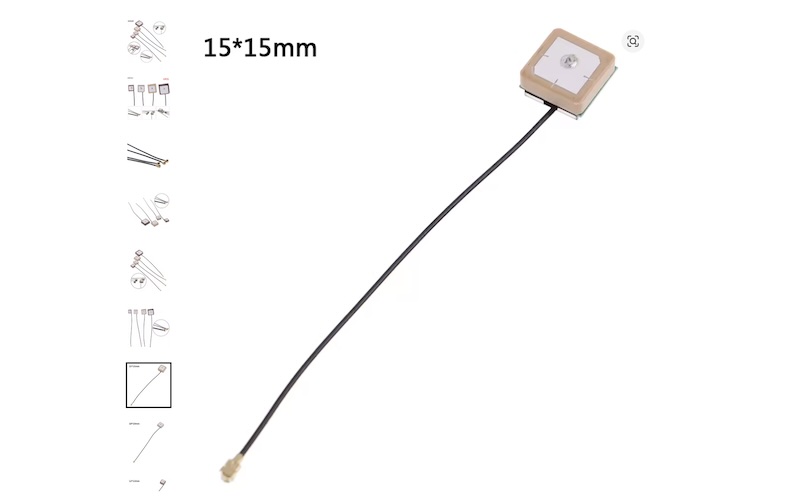

AliExpress: GPS antenna
Exact model: 15 x 15mm (Lavender)
BUY FROM ALIEXPRESS
10mA internal GPS antenna Dual antenna Active builtin ceramic.
BUILD ASSISTANT
Follow the Build Assistant to produce the GPS sensor
