Stern module
DOWNLOAD BLENDER FILE
Do not use Blender files for 3D printing. Use the STL downloads below instead.
Downloads are 100% free. You only need to log in or register.
Files for 3D printing
STL files for the servos and propeller shown in the visualisation can be found in the Mechanics section.
| Pict | Part name | Best material | Qty | Notes |
|---|---|---|---|---|
 |

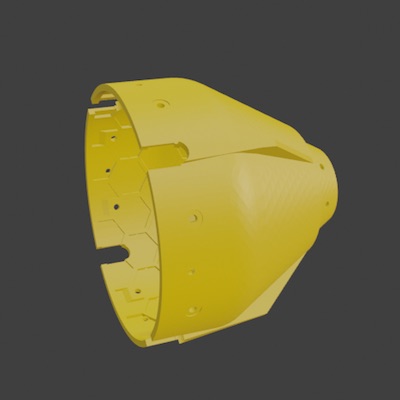

St_1 | PETG | 1 | |
 |

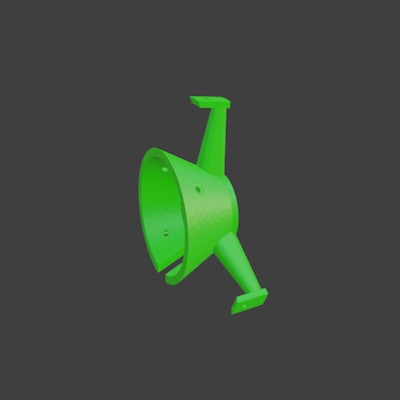

St_2 | PETG | 1 | |
 |

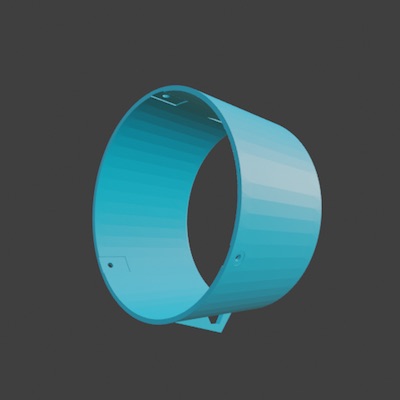

St_3 | PETG | 1 | |
 |

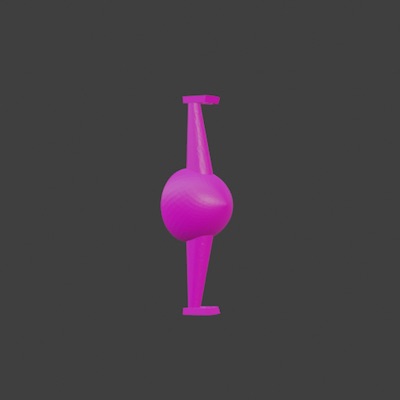

St_4 | PETG | 1 | |
 |

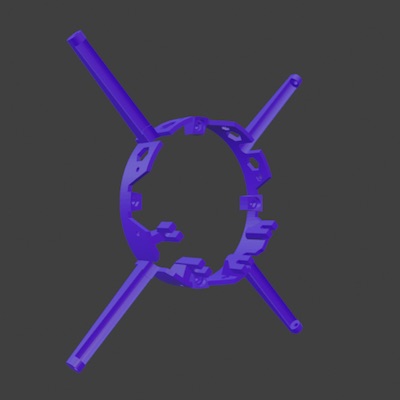

St_5 | PETG | 1 | When printing this part, use supports. 10–15% support is enough. This is the most spacious part, needing a 200 × 200 mm hotbed. |
 |

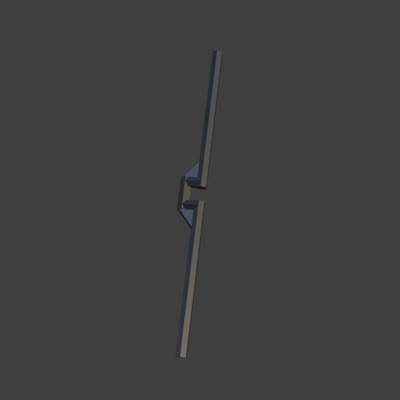

St_6 | PETG | 1 | When printing this part, use supports. 10–15% support is enough. Parts 8, 9, and 10 slide onto this part. If it prints slightly oversized, sand it a little to remove filament overflow. |
 |

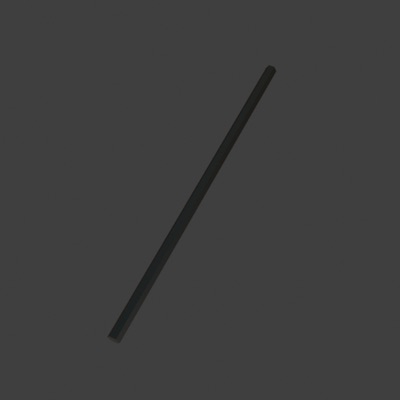

St_7 | PETG | 1 | Parts 8, 9, and 10 slide onto this part. If it prints slightly oversized, sand it a little to remove filament overflow. |
 |

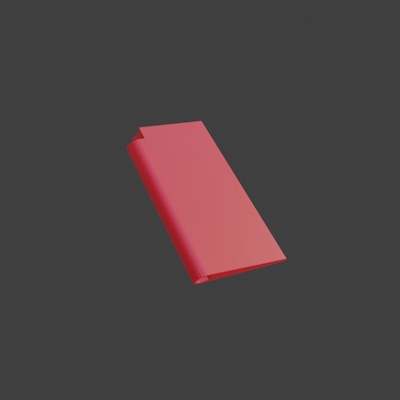

St_8 | PETG | 4 | |
 |

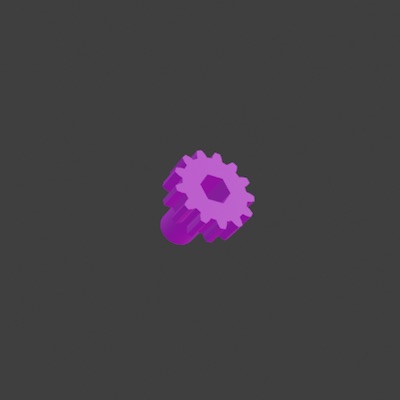

St_9 | PETG | 2 | Print gears with as much detail as you can. Use a layer height of 0.15 mm or finer. |
 |

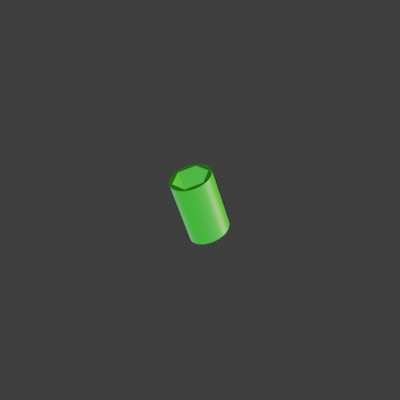

St_10 | PETG | 2 | |
 |

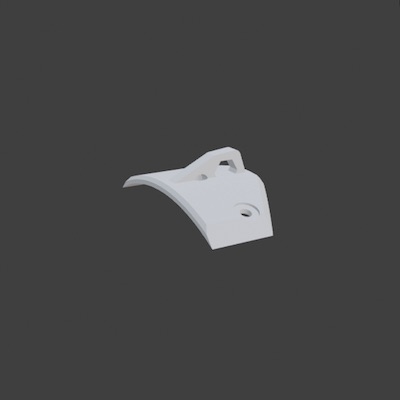

St_11 | PETG | 1 | When printing this part, use supports. 10–15% support is enough. |
STL FILES DOWNLOAD
3D part downloads are 100% free and the files are complete.
You only need to log in or register.
